Actalyke® XL ACT

Actalyke® XL ACT

Actalyke ACT test system

The Actalyke® Activated Clotting Time test system takes a bold step forward in the management of heparin anticoagulation. Actalyke analyzers are for use at the point of care during cardiopulmonary bypass, cardiac catheterization, angioplasty, hemodialysis and other procedures where heparin monitoring with accurate ACT results is needed. For enhanced user flexibility and cost-effectiveness. Actalyke instruments and test tubes are interchangeable with other ACT systems using electromagnetic clot detection principles.

Accurate Activated Clotting Time (ACT) testing is essential for monitoring heparin therapy during cardiac procedures and dialysis. Actalyke instruments and reagent tubes provide the sensitivity, reliability and rapidity needed to make timely treatment decisions at the point of care.

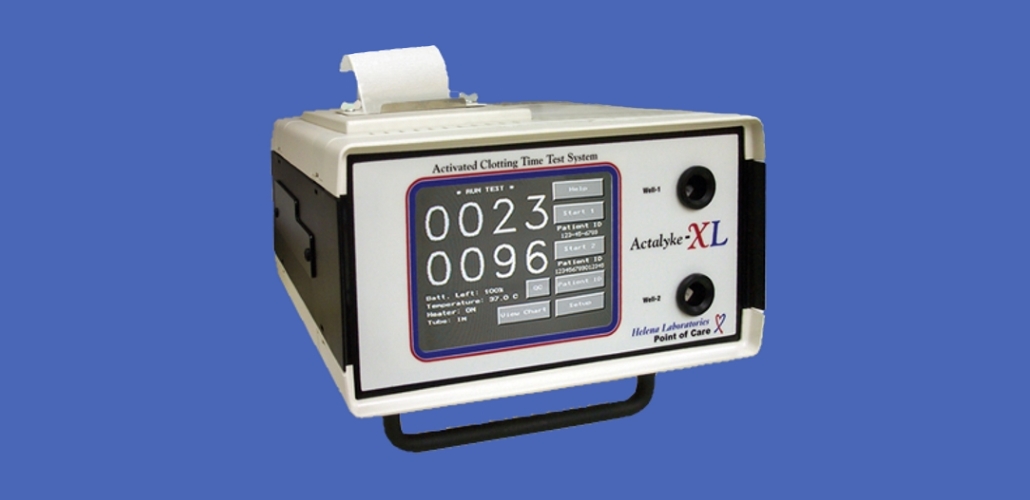

All Actalyke instruments use a two-point clot detection mechanism, enabling clot detection at the early fibrin formation stage with less variation due to clot fragility. This provides greater precision, especially on highly heparinized and diluted samples. The Actalyke XL is a premier analyzer offering dual-well testing, excellent reproducibility and strong data handling features. The XL is fully compatible with all ACT tubes. Helena offers a full line of Actalyke ACT tubes, including traditional glass bead, kaolin, celite® plus new MAX-ACT.

Accurate Activated Clotting Time (ACT) testing is essential for monitoring heparin therapy during cardiac procedures and dialysis. Actalyke instruments and reagent tubes provide the sensitivity, reliability and rapidity needed to make timely treatment decisions at the point of care.

All Actalyke instruments use a two-point clot detection mechanism, enabling clot detection at the early fibrin formation stage with less variation due to clot fragility. This provides greater precision, especially on highly heparinized and diluted samples. The Actalyke XL is a premier analyzer offering dual-well testing, excellent reproducibility and strong data handling features. The XL is fully compatible with all ACT tubes. Helena offers a full line of Actalyke ACT tubes, including traditional glass bead, kaolin, celite® plus new MAX-ACT.

Specifications

Tests: Whole Blood Activated Clotting Time (ACT). Accepts Actalyke ACT Tubes with celite, kaolin, glass-bead activators; MAX-ACT Tubes with blended activators; all International Technidyne Hemochron® tubes
Measurement Range: 0-1500 seconds
Incubation Temperature:  36.5ºC – 37.5ºC (97.7ºF – 99.5ºF)
Dimensions: 10.7”W x 8.0”H. x 12.0”L (27.2 x 20.3 x 30.5 cm)
Display: 3.2” x 4” Color LCD Touch Screen (8.1 x 10.2 cm)
Weight (with printer):  15 lbs. (6.8 kg)
Line Voltage:  47-63 Hz, 85-265 V A/C
Battery: Rechargeable
Environment: 15ºC to 30ºC (59 to 86ºF)
Data Input: LCD touch screen; Optional bar code reader for patient ID entry
Data transfer capability: 3.5” Diskette, RS232, RF Transmit, Printer
CLIA Classification:
 Moderately Complex
CE Certified; NCCLS-POCT 1-A Compliant
