DiaSpect Tm hemoglobin analyzer

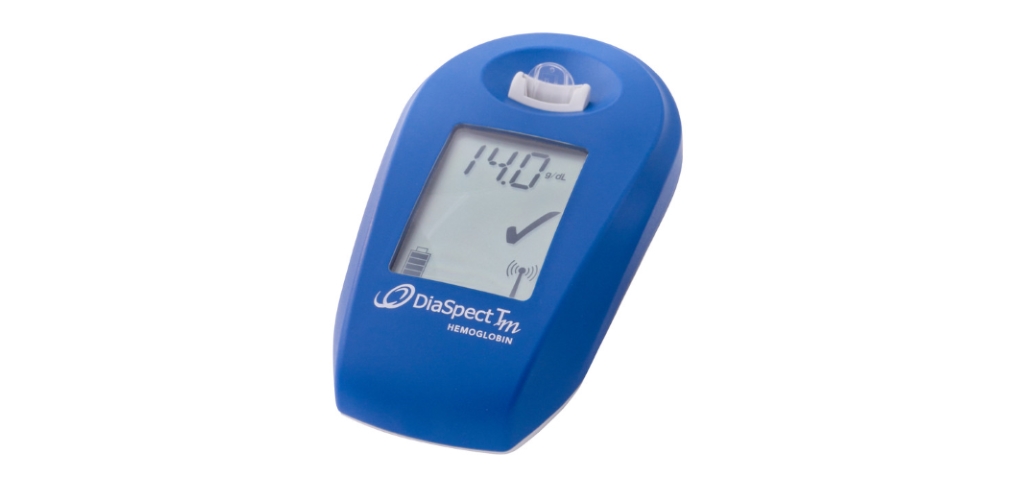

DiaSpect Tm hand-held Hemoglobin Analyzer product photo

DiaSpect Tm hand-held Hemoglobin Analyzer

The new palm-sized hemoglobin analyzer with laboratory quality performance and unmatched speed of anemia screening in any environment.

  • Result within 1-2 seconds
  • Broad spectrum sensor
  • Factory calibrated. Needs no further calibration
  • Self-check between every measurement
  • No moving parts
  • Built in rechargeable battery with >40 days / 10.000 tests run time
  • USB connection for charging and data transfer
  • Bluetooth wireless interface
  • Minimal maintenance/cleaning
  • Reagent-free microcuvettes
  • Dimensions: 150 x 90 x 40mm

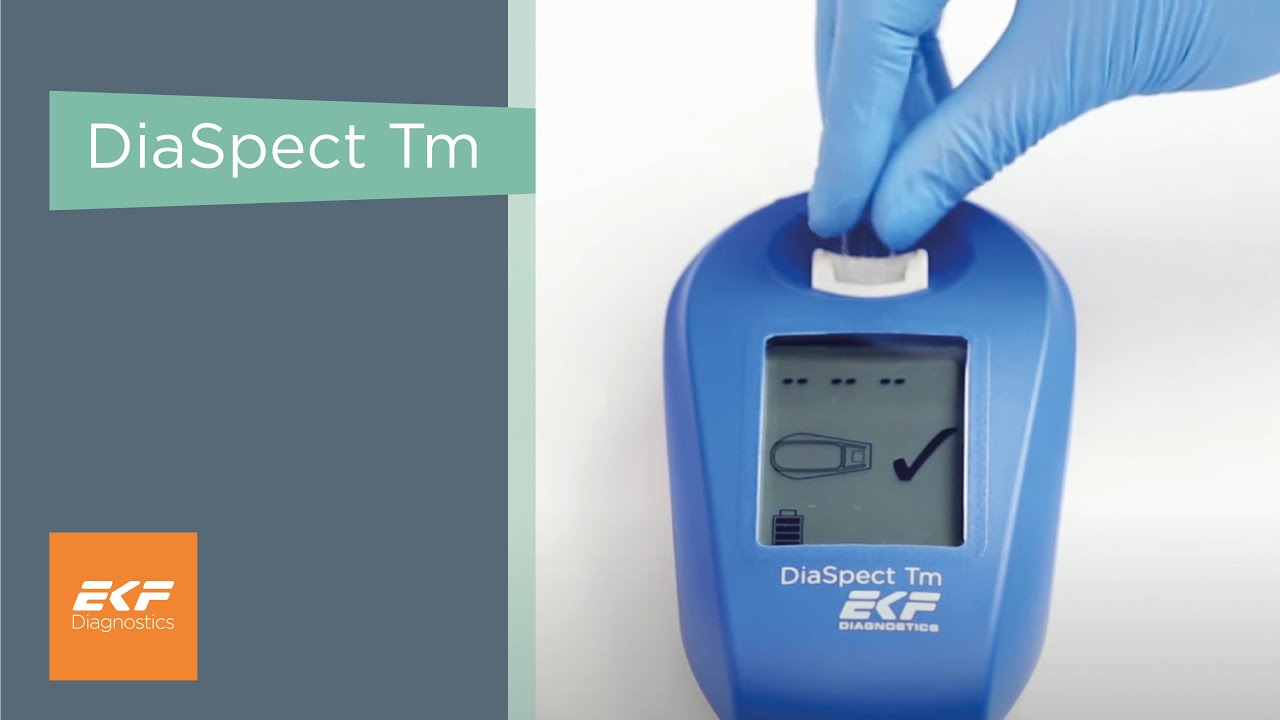

Easy hemoglobin measurements in 3 steps

DiaSpect Tm hand-held Hemoglobin Analyzer usage steps from collecting blood to Insert the filled cuvette and the results appear

POC Connect – DiaSpect Tm connectivity


  • POC Connect enables mobile data management for the DiaSpect Tm
  • Sync results from your DiaSpect Tm device to a smartphone via Bluetooth
  • Add user IDs, QC information, Cuvette LOT numbers and dates
  • Store multiple results on your smartphone for quick and easy access
  • Export results to a protected CSV file for further processing by a central database or LIS
DiaSpect Tm hand-held Hemoglobin Analyzer DiaSpectTm Connectivity solution with mobile phone application product photo

DiaSpect Tm hemoglobin analyzer specifications

Easy to use

  • Always-on’ technology. Ready for use immediately
  • Automatic self-check between each measurement
  • Symbol-based display
  • Factory calibrated with permanent calibration

Practival and portable

  • Hemoglobin results in just about one second
  •  Capillary, venous or arterial blood  (EDTA and Heparin anticoagulant can be used)
  • Compact in size and weighs just 180g
  • No maintenance required. Auto self-test
  • Integrated rechargeable battery (40 days or 10,000 tests continous use)

Accurate and reliable

  • Photometric method using a broad spectrum
  • Operating ambient temperature 10 °C to 42 °C
  • Measuring range: 0 – 25.5 g/dL
  • Imprecision (within run): CV <1 %
  • Calibrated against HiCN reference method according to ICSH

Reagent-free microcuvettes

  • Sample volume <10 µL
  • Shelf life of up to 2.5 years, even after the bag has been opened
  • Storage temperature: 0 °C ­- 50 °C (- 30 °C ­- 70 °C up to 24 hours)
  • Easy to pick up and handle with gloves
  • CE marked
  • Manufactured in Germany

Technical data

Range 0 – 255 g/L (0 – 25.5 g/dL, 0 – 15.9 mmol/L)
Operating temperature 10°C to 35°C
Storage temperature 0°C to 50°C (-30°C to 70°C during transport, max. 24h)
Power adapter input 100 – 240 V AC, 50-60 Hz
Data interface USB 2.0, Bluetooth Smart (optional)
Dimensions 9 x 14.5 x 5 cm (W x D x H)
Weight 200 g
