Diatron Aquila

The Diatron Aquila is an innovative and revolutionary 3-part differential hematology analyzer

  • Portable
  • User friendly
  • Cost effective
  • Fast and Reliable

The Diatron Aquila is an innovative and revolutionary 3-part differential hematology analyzer that can be used in any testing location and application where high quality CBC results are desired. Our latest technology offers the optimal testing solution for both the experienced and inexperienced user and practices which require a high quality hematology analyzer.

Bringing CBC testing close to you

Diatron has utilized its many years of expertise in developoing and manufacturing hematology analyzers to produce the Diatron Aquila: an innovative and revolutionary instrument that is suitable for many testing scenarios such as satellite laboratories, point of care (e.g. physician offices and clinics) and routine laboratories.

Diatron Aquila test results

Portable

Lightweight and with optional battery pack a fully portable, small foot print analyzer, applicable for use in all locations.

Fast and reliable

Accurate results with regular and micro-sampling collection tubes with only 20 μl blood required and results in less than 1 minute.



User friendly

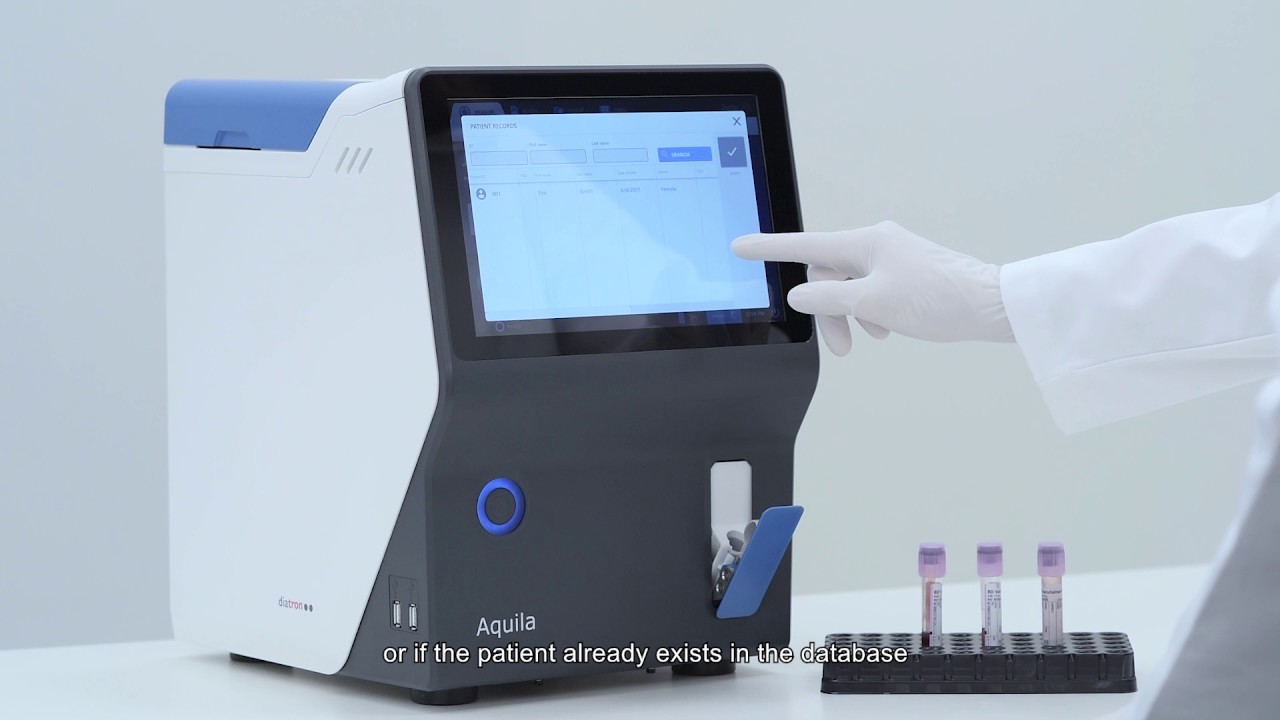

Large touch screen with specially designed user interface for nonexperienced operators – Userfriendly and good LIS connections.



Cost effective

Easy, safe and biohazard-free on-board integrated reagent pack and waste, up to 200 measurements per pack with up to 60 days stability on the analyzer allows complete cost control.

Diatron Aquila Specifications

Measurments

Troughput 60 tests/hour
Parameters 22 hematology parameters,
3 separate histograms: WBC, LYM, MID,
GRA, LYM%, MID%, GRA%, RBC, HCT,
MCV, RDWc, RDWs, HGB, MCH, MCHC,
PLT, PCT, MPV, PDWc, PDWs, P-LCC,
P-LCR%
Technology Impedance
Sample collection Venous or capillary
Supported sample tubes
EDTA collection
tubes and micro-sampling tubes
Sample volumes
Sample volume: ~20 μl of whole blood
Sampling method
Open and closed tube
system with automatic sampling port
Sample profiles
User selectable

User interface

Display Capacitive 10.1˝, TFT Touch Screen,
1280 x 800 resolution
Data storage capacity Up to 10,000 results
including histograms
Printer options Any Windows 8.1
supported external USB printer
User interface Intuitive, logical,
easy to use GUI
User assignment options Various user
management levels and other cybersecurity
conformity
LIS communication HL7 protocol
Log file Displays history of analyzer
actions/errors
User languages English, German, Italian,
Indonesian

Quality control

Qc functions                  The trend function allows
to display the selected records from the
database on Levey-Jennings charts
Extended QC mode Secondary
QC limits for all parameters
USB Barcode reader Sample ID, Control

Physical parameters

Size (Width x Depth x Height) 32 cm x 27 cm x 37 cm incl. reagent pack
13˝ x 11˝ x 14˝
Weight ~15kg/33 lbs inc reagent bottle
Power supply 24 V DC and 3.75 A
*Optional Battery capacity Optional battery allows to measure up to
100 samples continuously

Reagents

  • Diatro3P Reagent Smart Pack
  • Hardware key protected pack
  • Up to 800 (4 x 200) measurements/pack
    dependent on usage

Communication interfaces

  • 1x LAN
  • 4x rear USB ports and 2x side USB ports
  • WiFi/4G dongle support
